DRF25-60W

OPTIMISED CONSUMPTION

Two wide conveyors with separate control.

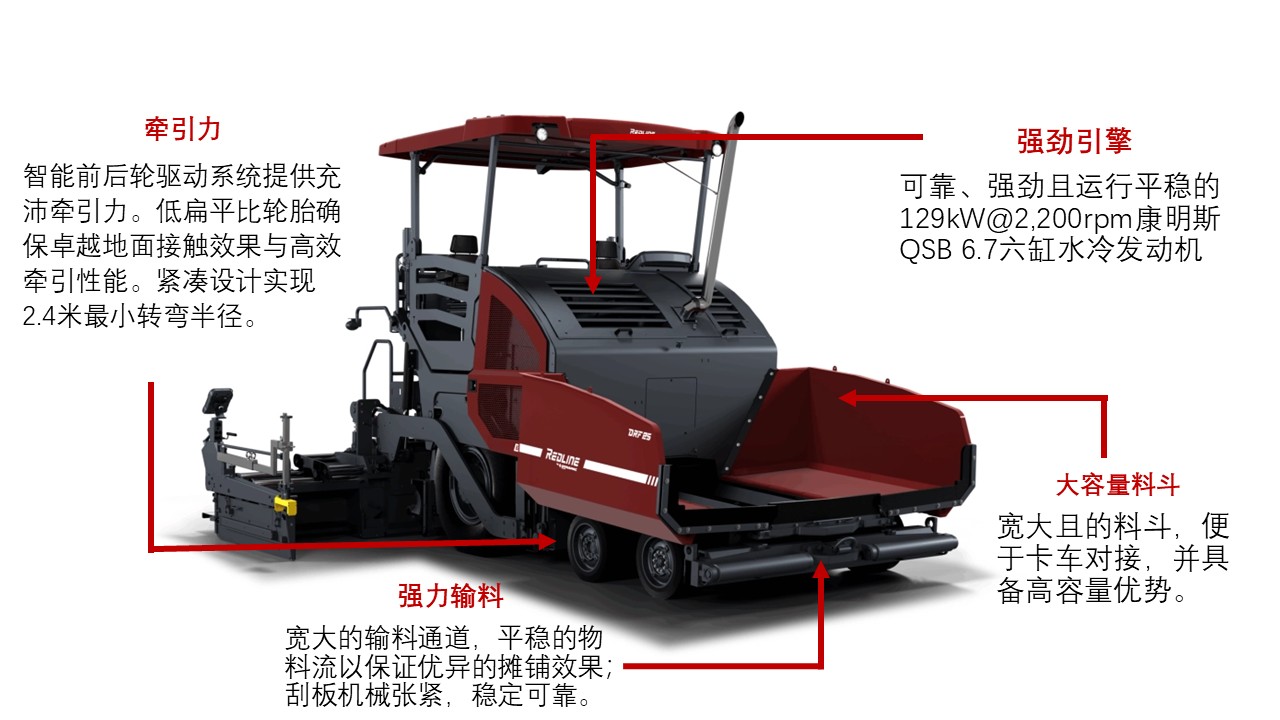

TRACTION

Ample traction due to smart rear and front wheels drive. The low-profile tires give superior ground contact and effective traction. Compact in design with 2.4m inner turning radius

OPTIMISED COMFORT AND SAFETY

Specious Cabin, ergonomic seat, extra tool storage, anti slip steps, intuitive dashboard – maximize efficiency, enhance safety

Powerful engine

Reliable, powerful and smooth running 129kW Cummins QSB 6.7 6-cylinder, water cooled engine

Homogeneous material flow

Wide and long hopper for easy truck docking and high capacity

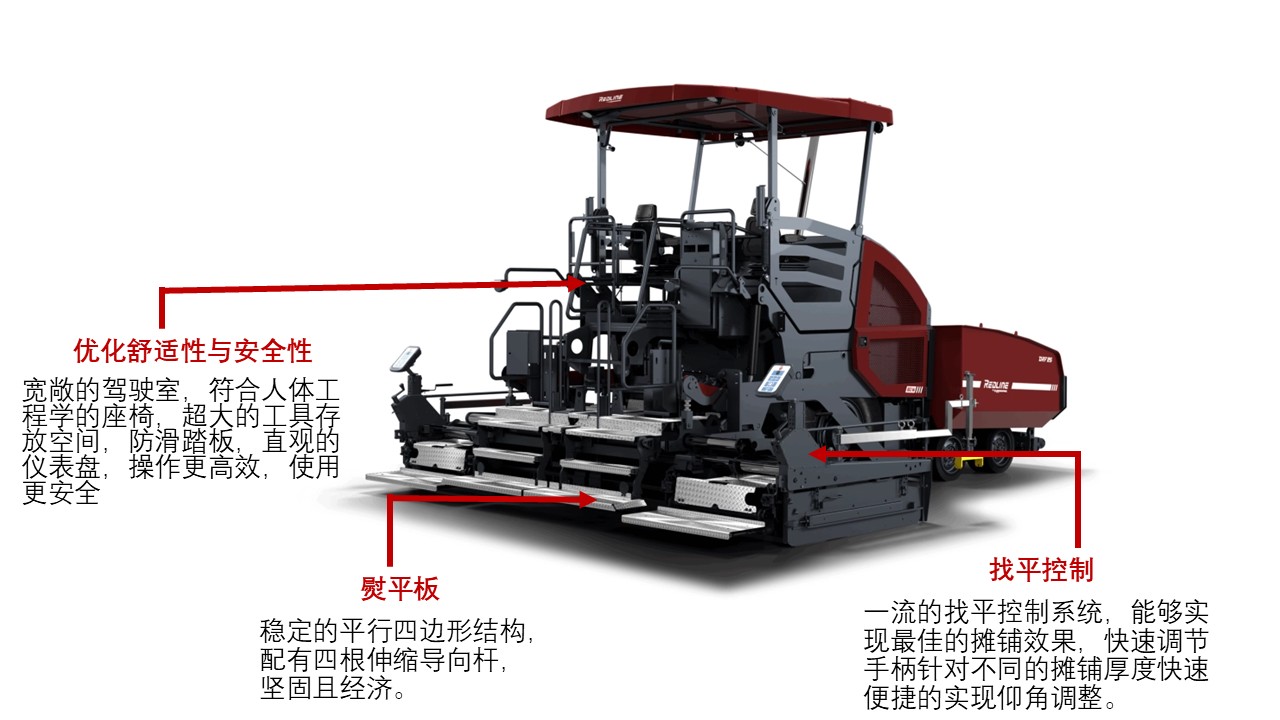

OPTIMISED COMFORT AND SAFETY

Specious Cabin, ergonomic seat, extra tool storage, anti slip steps, intuitive dashboard – maximize efficiency, enhance safety

EFFORTLESS MAINTENANCE

Rigid screed design with 4 tube extension– rigid & economic

Screed adjustments

Objects Rigid and long side shields for an excellent paving quality. One central working place behind the screed. Ergonomic side shield control

Specifications

Basic width	2,55 m
Working width	2,55 up to 6,7 m
Theoretical placement capacity	650 t
Engine type	Cummins QSB 6.7
Engine rated power @2200 rpm	129 kW
Available screeds	DRV51TVE, DRV60TVE

Support & Download

Product Range Brochure

Product Brochure

Datasheet

Features & Benefits

Powerful engine

UK Cummins QSB 6.7 6-cylinder water cooled engine 129kW@2,200rpm, High-Pressure Common Rail Technology, delivering high performance with low fuel consumption. Worldwide famous brand running reliable and durable

Outstanding Traction

The pavers have ample traction due to smart rear wheel drive. The low-profile tires give superior ground contact and effective traction in work as well as drive modes. The paver features an asymmetric suspended axle that allows ground contact for the front tires in uneven ground conditions.

Diversity and Flexibility

Available in 2 sizes DRV51TVE and DRV60TVE, hydraulic extend from 2.55m~5.1m and 3m ~ 6m; 2.4 m inner turning radius for easy operation within city roads, Eccentric lever can change the angle of attack fast and convenient for time saving, and the layer thickness adjustment during the paving work
